Duplex SM Armored FTTA Patch Cord 40m CPRI Patch Cord 7.0mm LSZH PDLC Base Station
2F SM Armored FTTA Patch Cord 40m CPRI Patch Cord 7.0mm Black LSZH BBU RRU PDLC Housing Base Station
PDLC housing IP67
Spiral armored fiber cables are suitable for outdoor use, because Spiral armored fiber cables are UV- resistance, and can take temperature fluctuations, then are often used for outdoor communication networks, industrial and infrastructure projects.
Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks, like FTTA, FTTH, FTTB, FTTR, etc..
Parameter
| Item | Armored CPRI patch cord |
| Fiber | G657A |
| Cable diameter | 5.0mm |
| Cable jacket | Black LSZH |
| Length | 30M |
| Insert loss | ＜ 0.30dB |
| Return loss | ≥50dB (UPC) |
| Temperature | -30℃~70℃ |
| Fan-out cable | DLC-3CM with PDLC housing, DLC-10CM |
| Cable Grade | IEC60332-1-2, or IEC60332-3-24, Comply with ROHS |

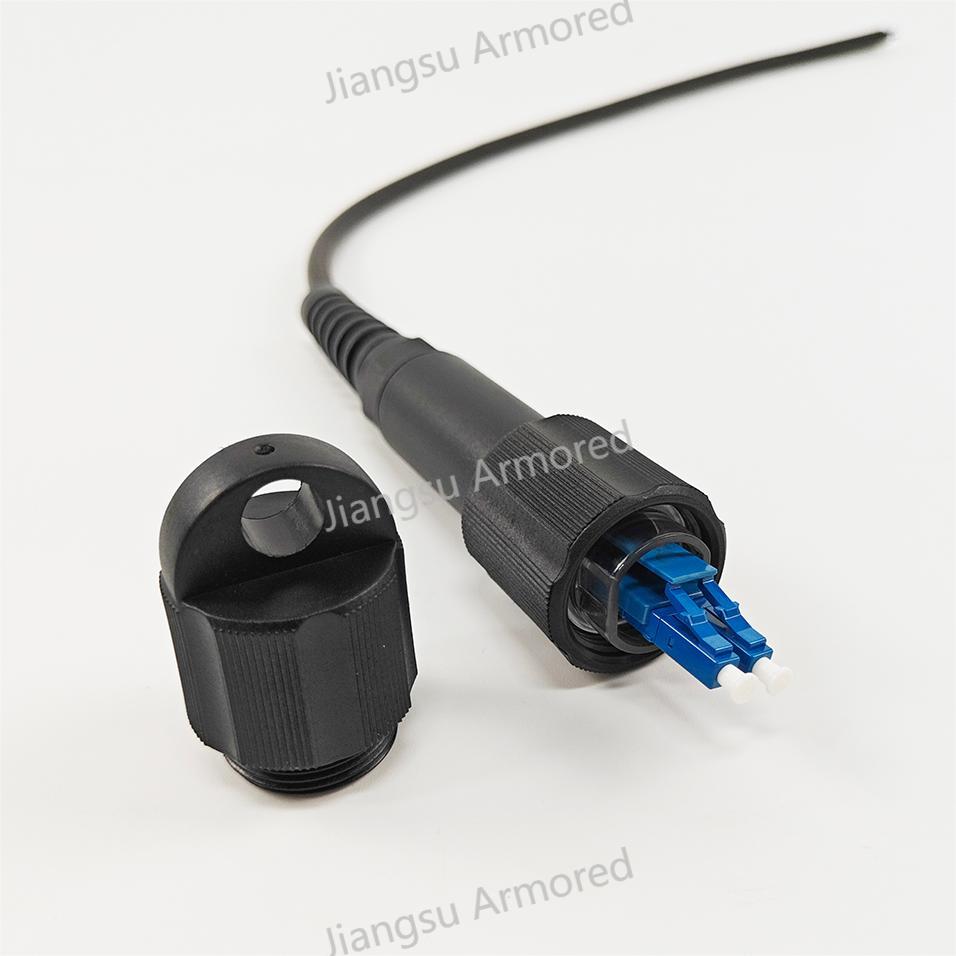

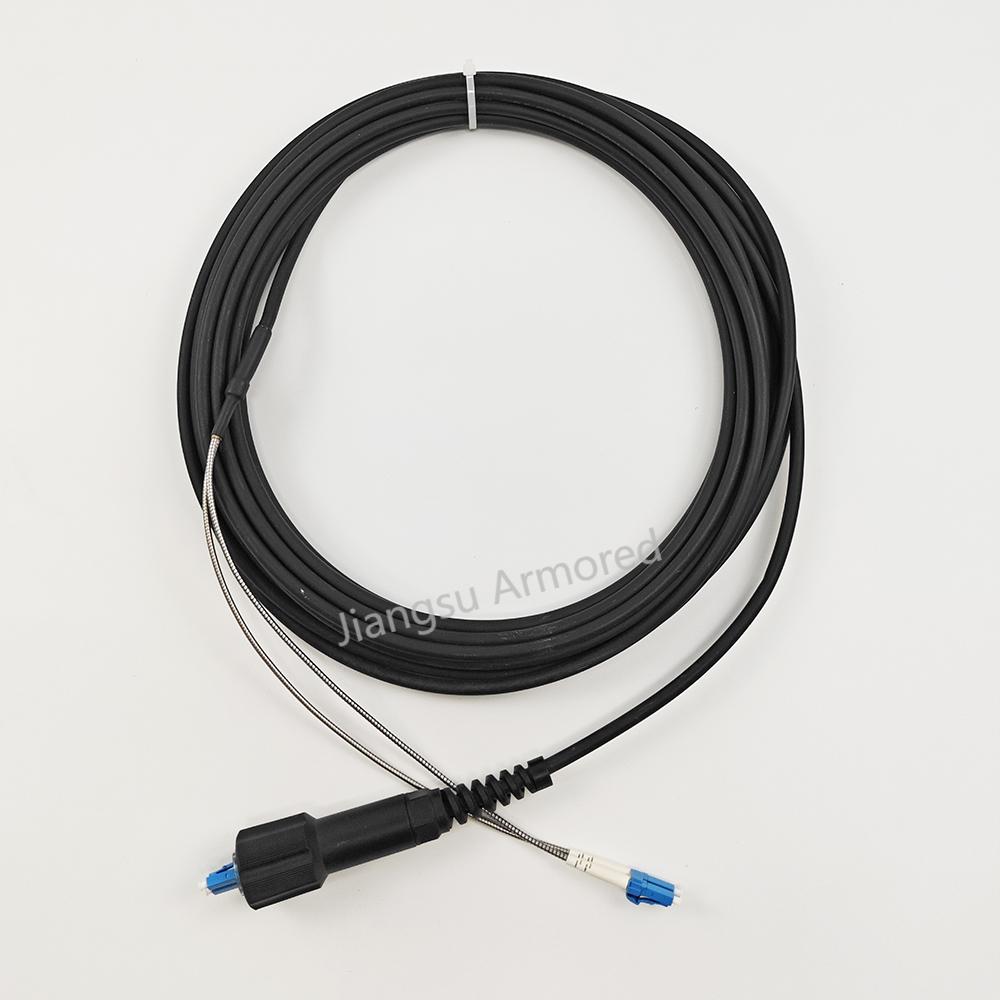

Armored patch cord product showing,
DLC fan-out length 3cm with PDLC housing, DLC fan-out length 10cm.

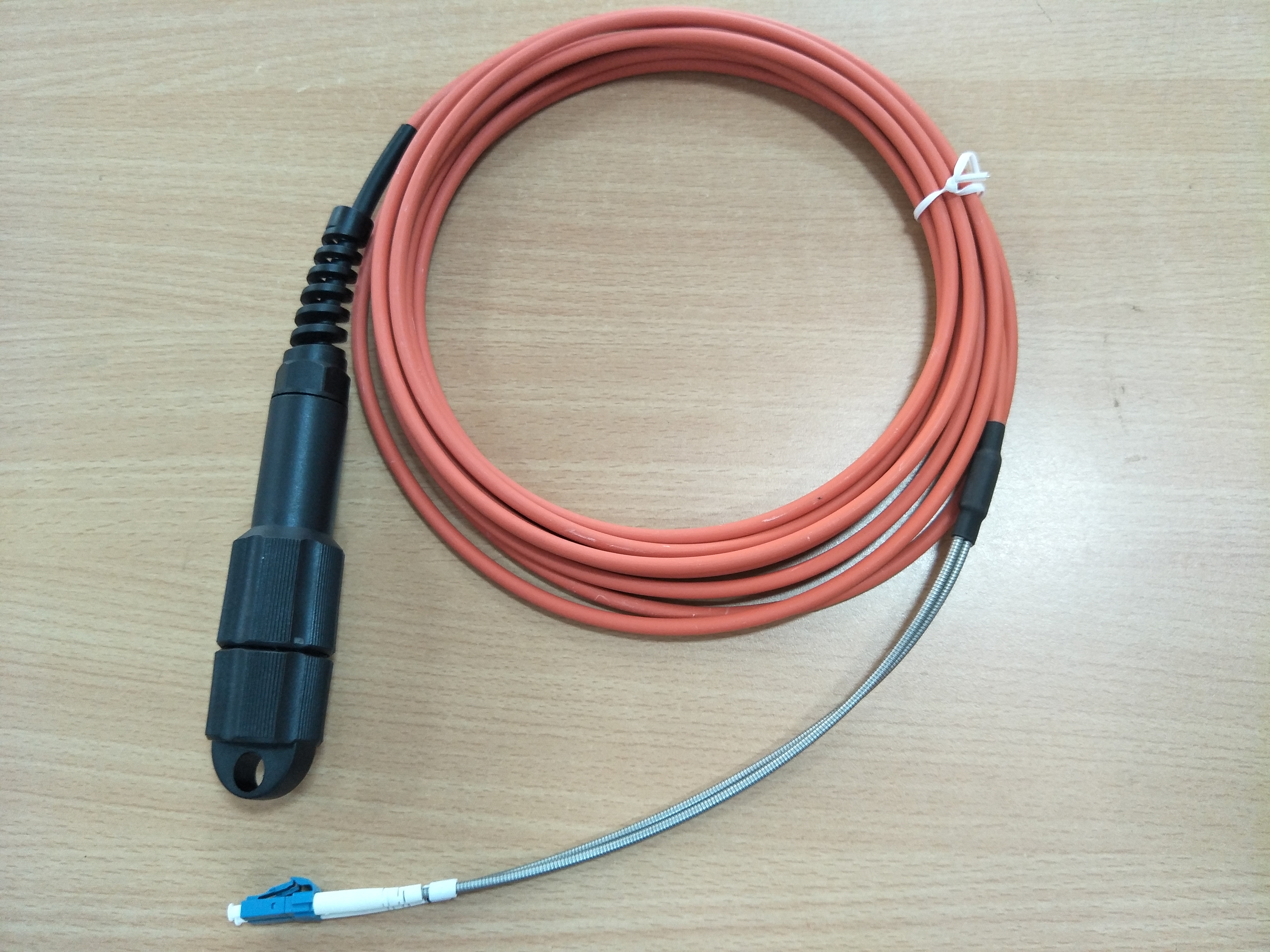

(the fan-out length is according to customers' requirement, they're customized. Like following oragne armroed patch cord)
Feature
- Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- UV-resistant
Applications
- Used in BBU and RRU
- Used in the open field, connections between optical equipment.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
