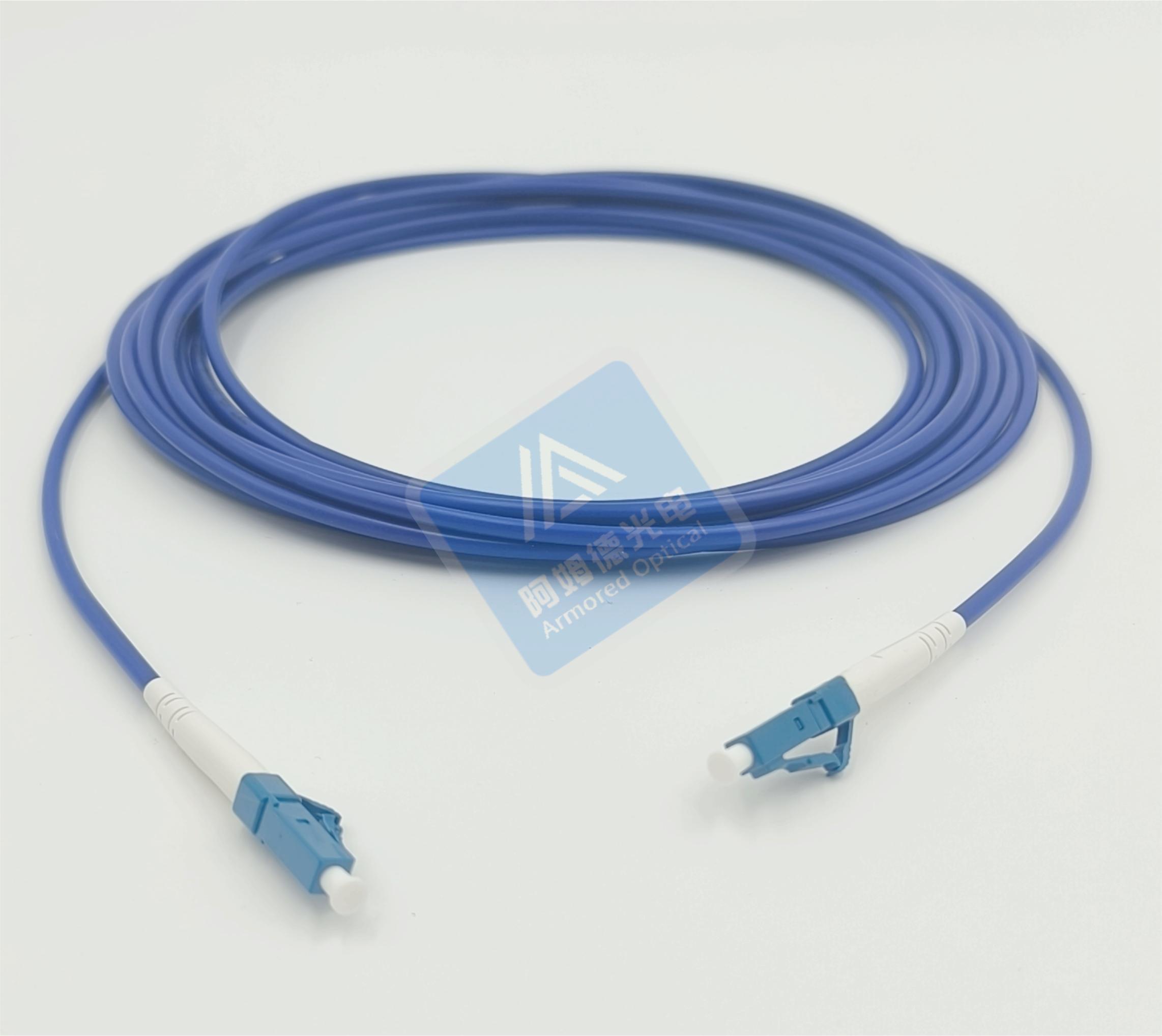

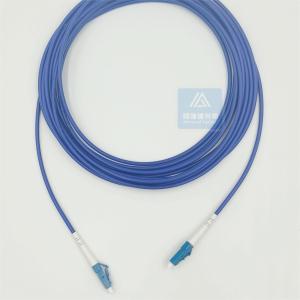

15m Armored Patch Cable LC UPC 3.0mm Blue PVC FTTH Rodent Resistant 1 Core

  • 1
  • 2
  • 3

Brand Name : JIANGSU ARMORED

Model Number : 1F-A2-3.0-PVC-LC-LC-15M

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000M Cable

Price : To Be Advised

Supply Ability : 4000pcs Connector Per Day

Delivery Time : 1 Working Weeks

Packaging Details : Plastic bags , Carton, and Pallet. By Sea or Air shipment

Name : 1 Core Armored Patch Cord

Length : 10M

Jacket : PVC

Color : Blue

Diameter : 3mm

Fiber Mode : Single Mode and Multi Mode

Flame Rating : IEC60332-1-2, OFCR, or OFCP

Application : FTTH, datacenter,

Feature : Rodent Resistant

Contact Now

1 core 15m Armored Patch Cord LC/UPC 3.0mm Blue PVC Flame Resistant FTTH Rodent Resistant

Simplex Armored Patch Cord 10m LC/UPC 3.0mm Blue PVC Flame Resistant FTTH

Rodent Resistant, 1F Armoured Patch Jumper, Fiber Cable Assembly

Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.

Micro armored fiber cable using high property aramid yarn, increasing tension property, and fit for long distance application.

Micro armored fiber cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.

Different jacket material fit for different environments.

Parameter

Item Armored patch cord
Fiber G657A, OM1, OM2, OM3, OM4
Cable diameter 2.0 or 3.0 MM, etc.
Cable jacket PVC (LSZH and PU are optional)
Length 1M, 2M, 10M,......2000M
Insert loss ＜ 0.30dB
Return loss ≥50dB (UPC), ≥60dB (APC), ≥25dB (MM)
Temperature PVC: -20℃~70℃, LSZH: -40℃~80℃
Fan-out cable N/A

Cable Grade

The following standard can be choosen,

IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, OFCP, etc.

Comply with ROHS

Production line show

15m Armored Patch Cable LC UPC 3.0mm Blue PVC FTTH Rodent Resistant 1 Core

15m Armored Patch Cable LC UPC 3.0mm Blue PVC FTTH Rodent Resistant 1 Core

15m Armored Patch Cable LC UPC 3.0mm Blue PVC FTTH Rodent Resistant 1 Core

15m Armored Patch Cable LC UPC 3.0mm Blue PVC FTTH Rodent Resistant 1 Core
